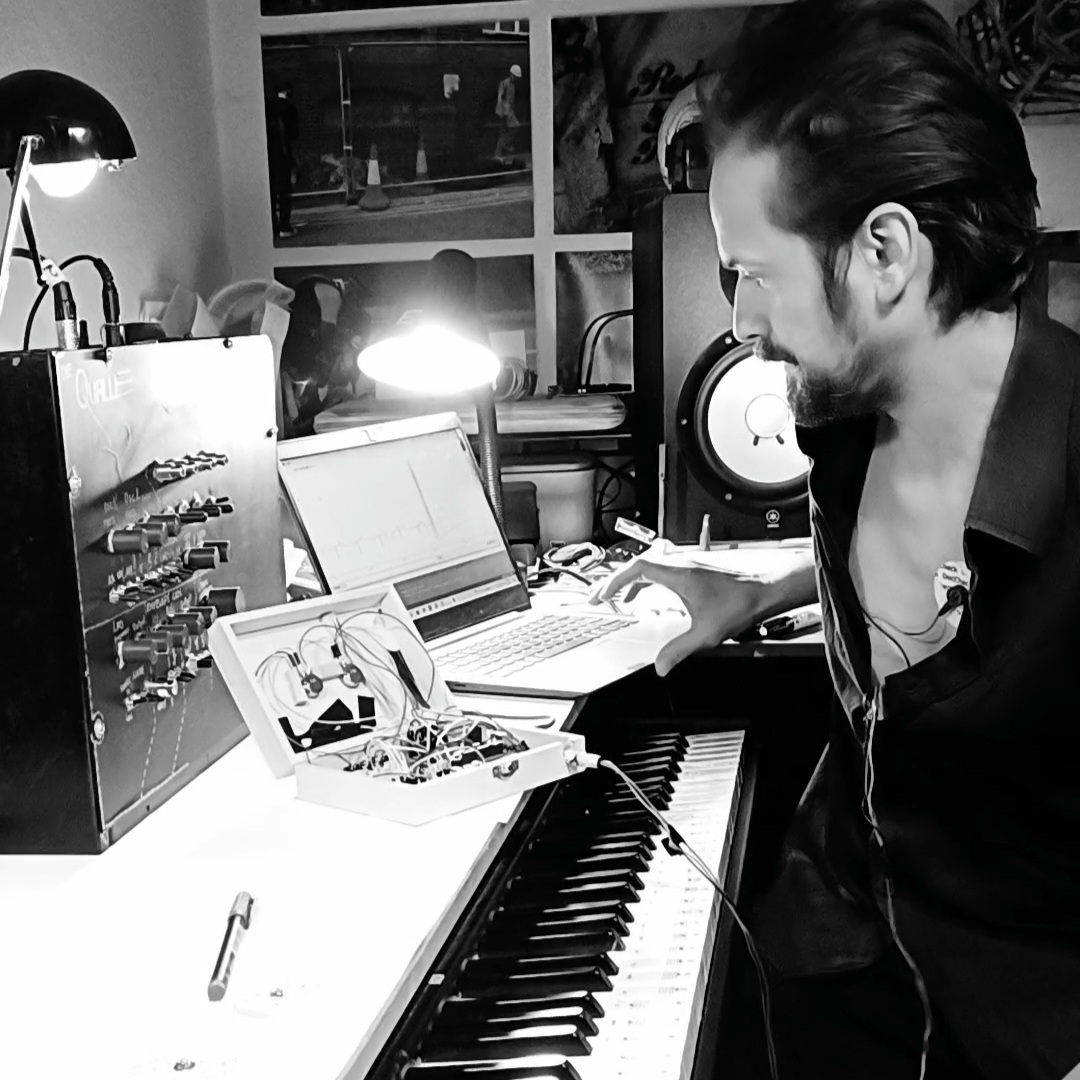

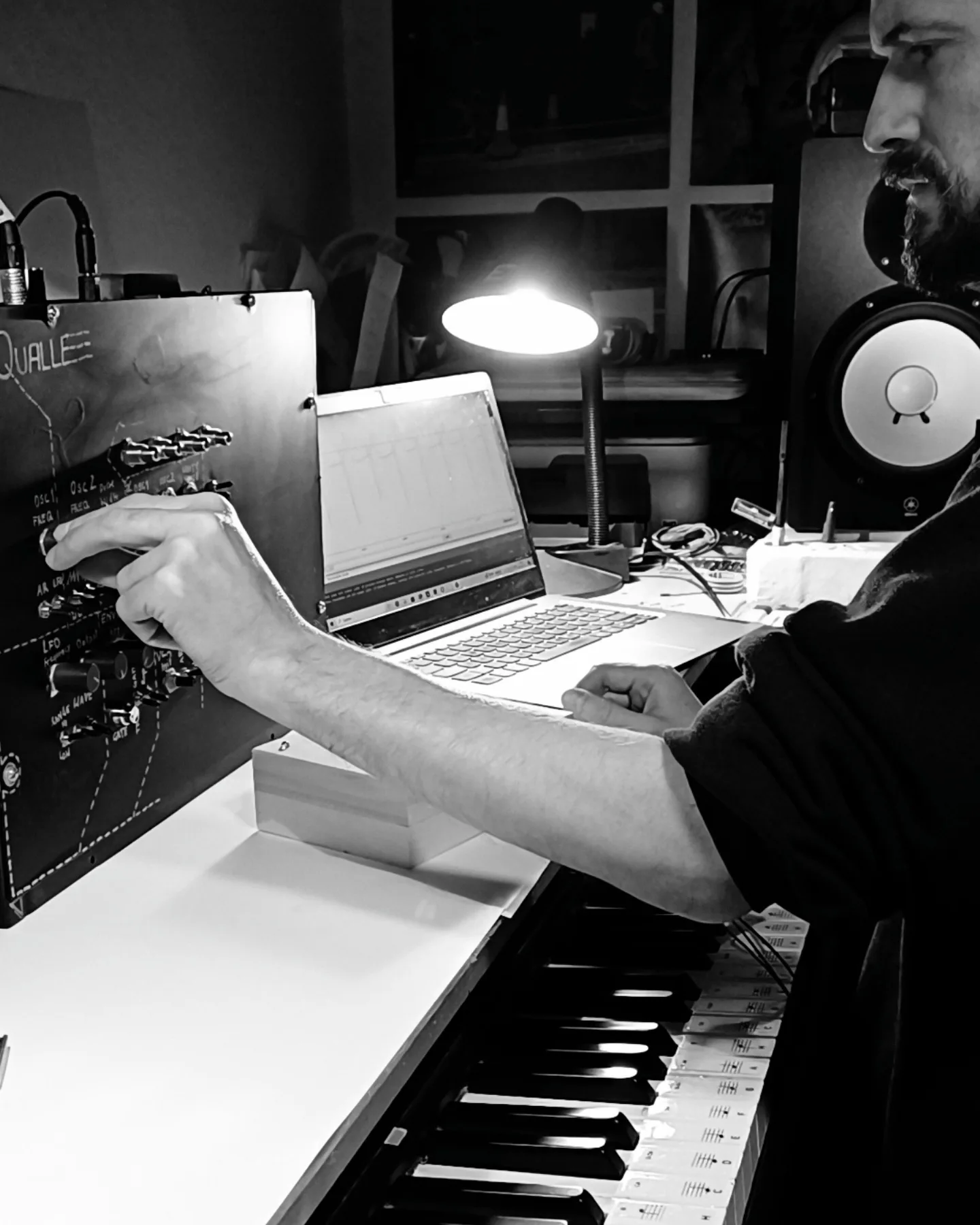

This device i built transforms the heartbeat into CV and gate signals to control a synthesizer for my sound performance 'Heart ad libitum'.

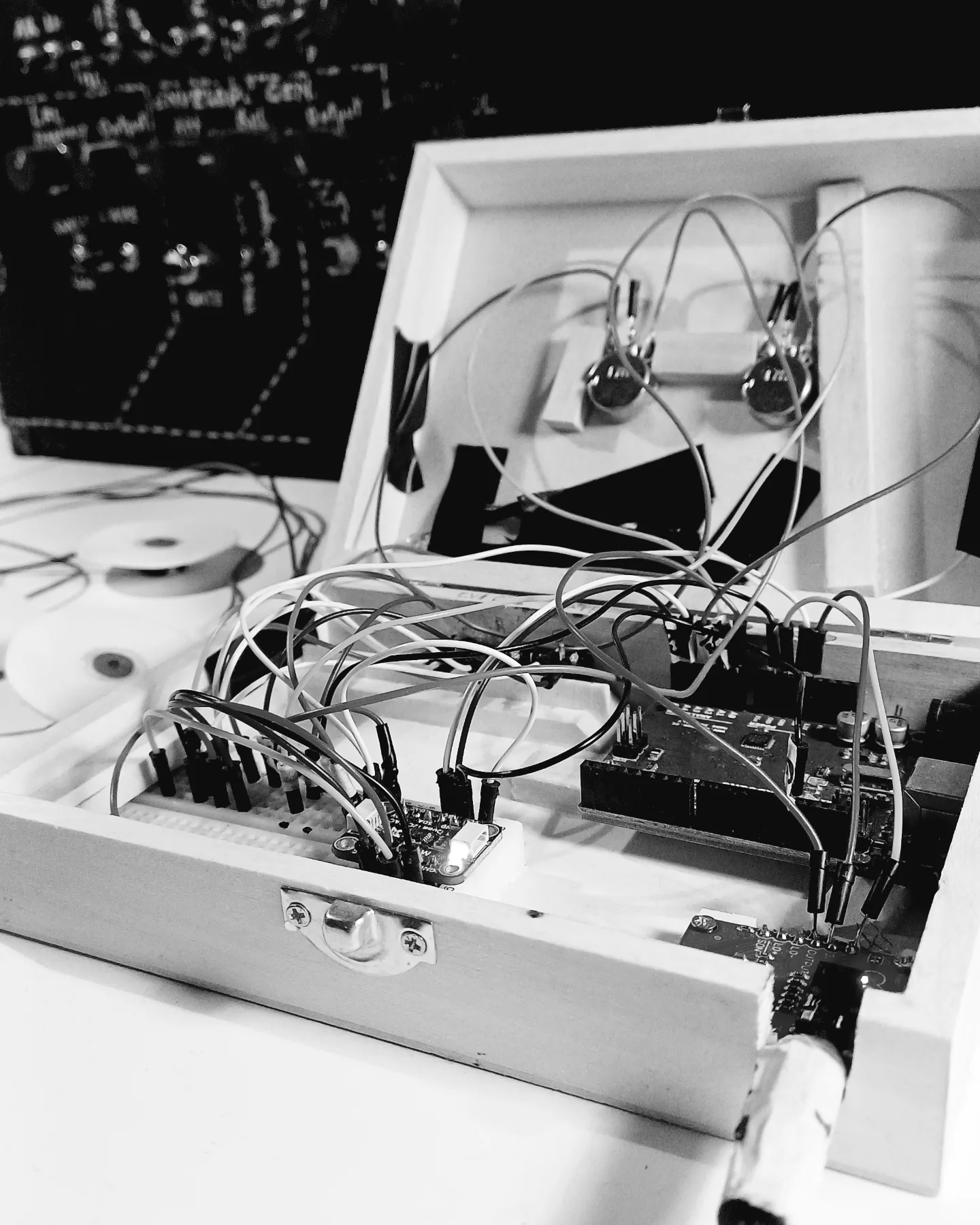

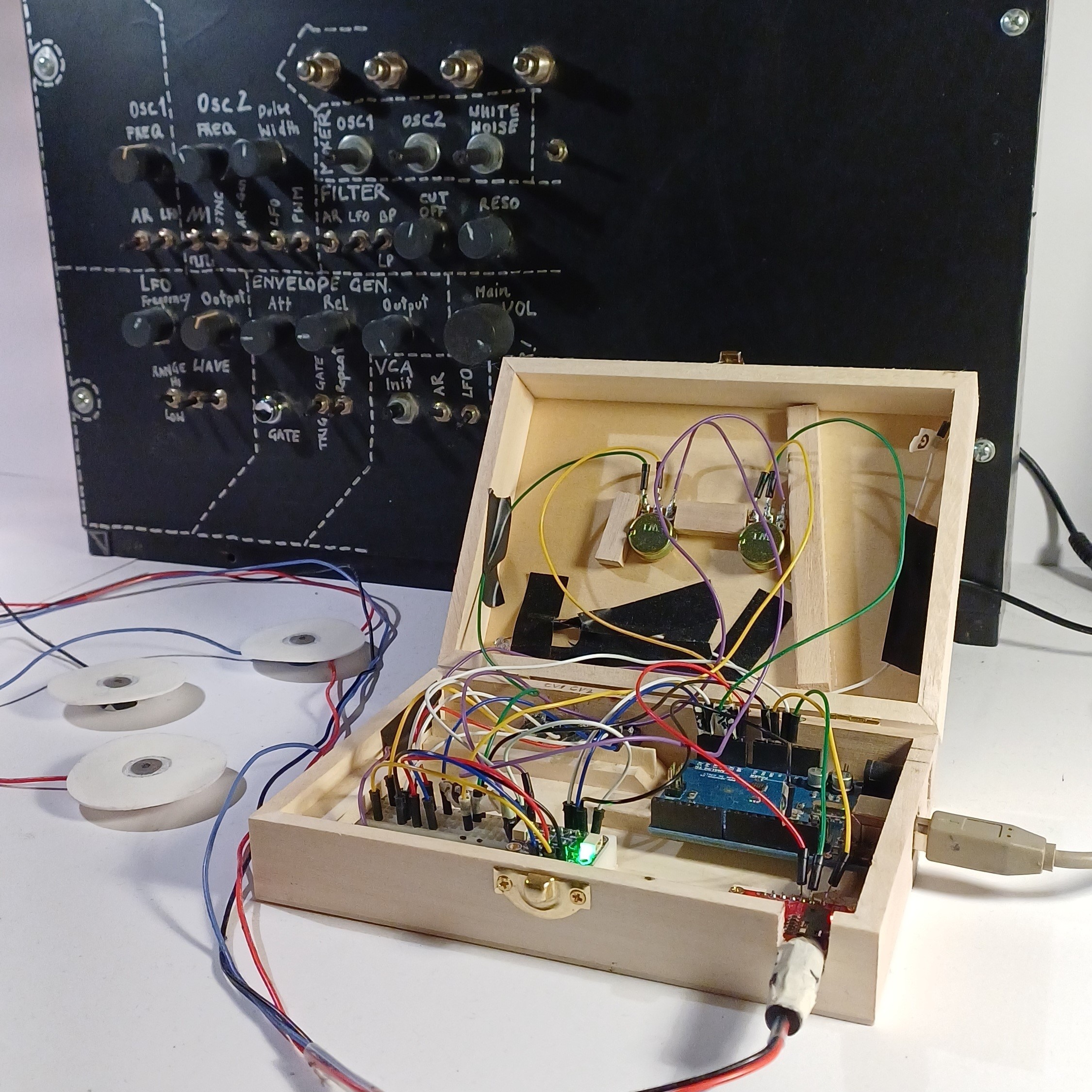

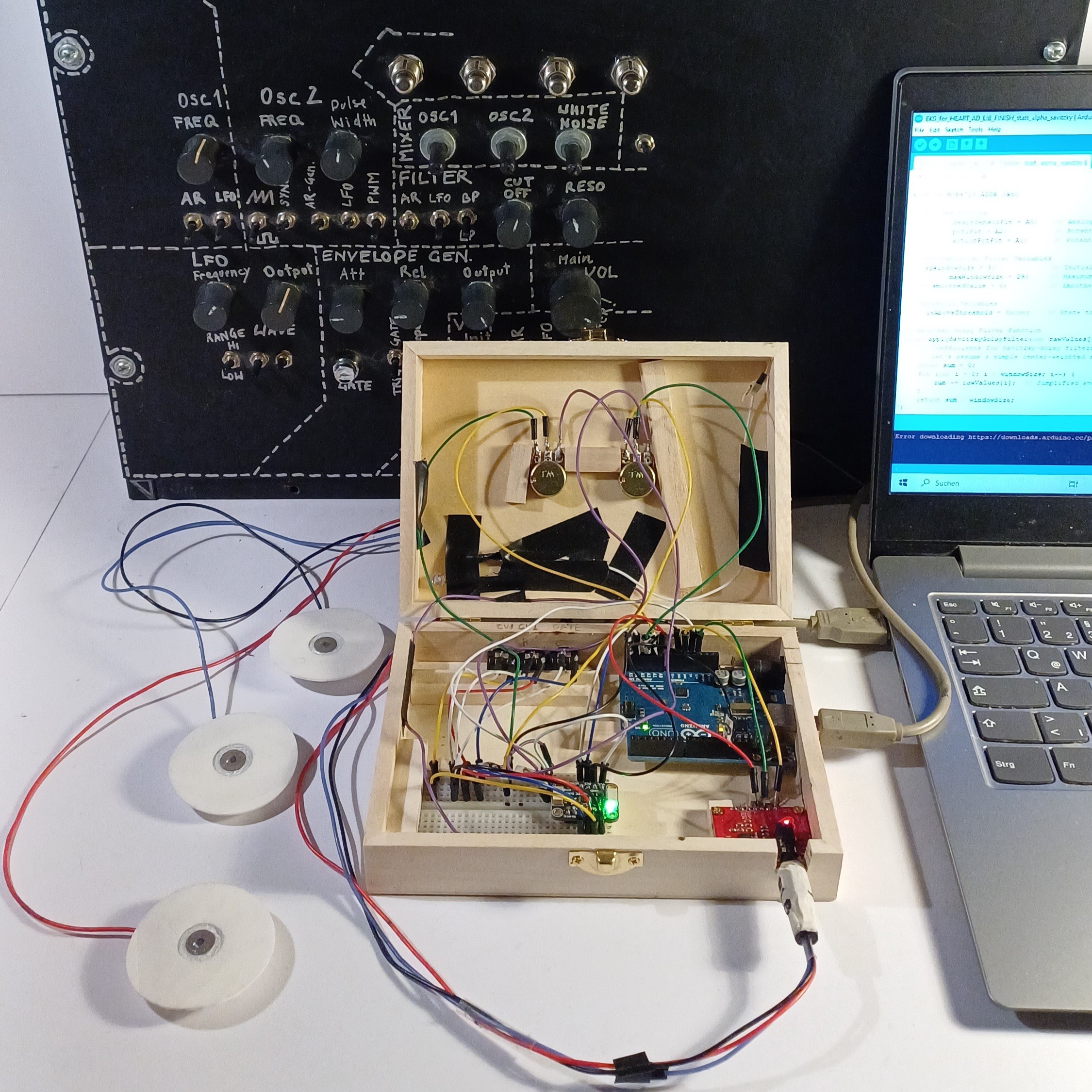

Using a SparkFun EKG Module AD8232 and electrodes placed on the body, the heart data is read and processed by an Arduino Uno and then sent to an Adafruit MCP4728 digital-to-analog converter to generate three separate outputs:

Output A: Raw heart data to the CV input.

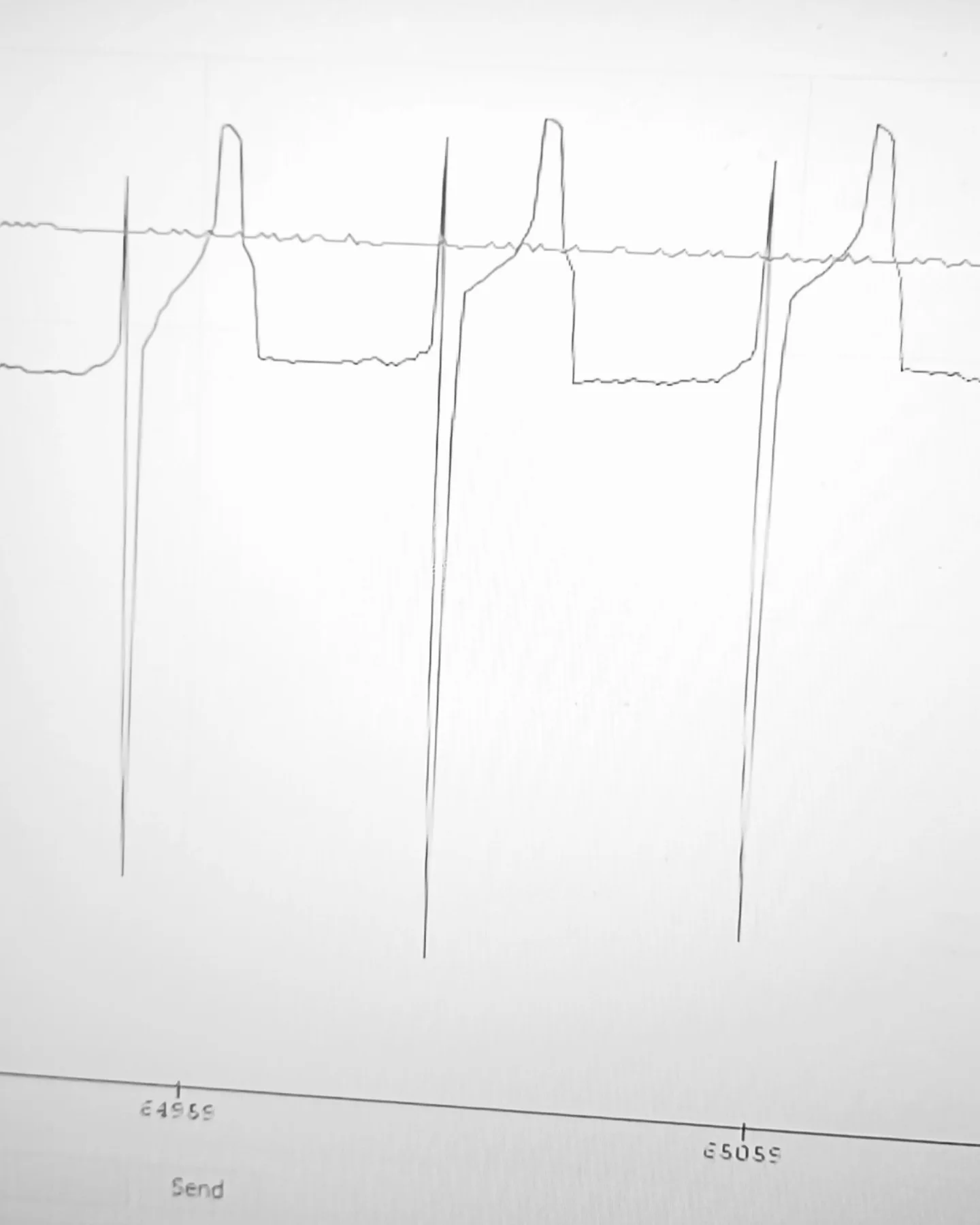

Output B: Smoothed heart data to the CV input.
Output C: Heartbeat as a 0/5V gate signal (with adjustable threshold) to the synthesizer gate input.


Two potentiometers are used to adjust the following parameters:

Pot 1: Threshold for the gate output.

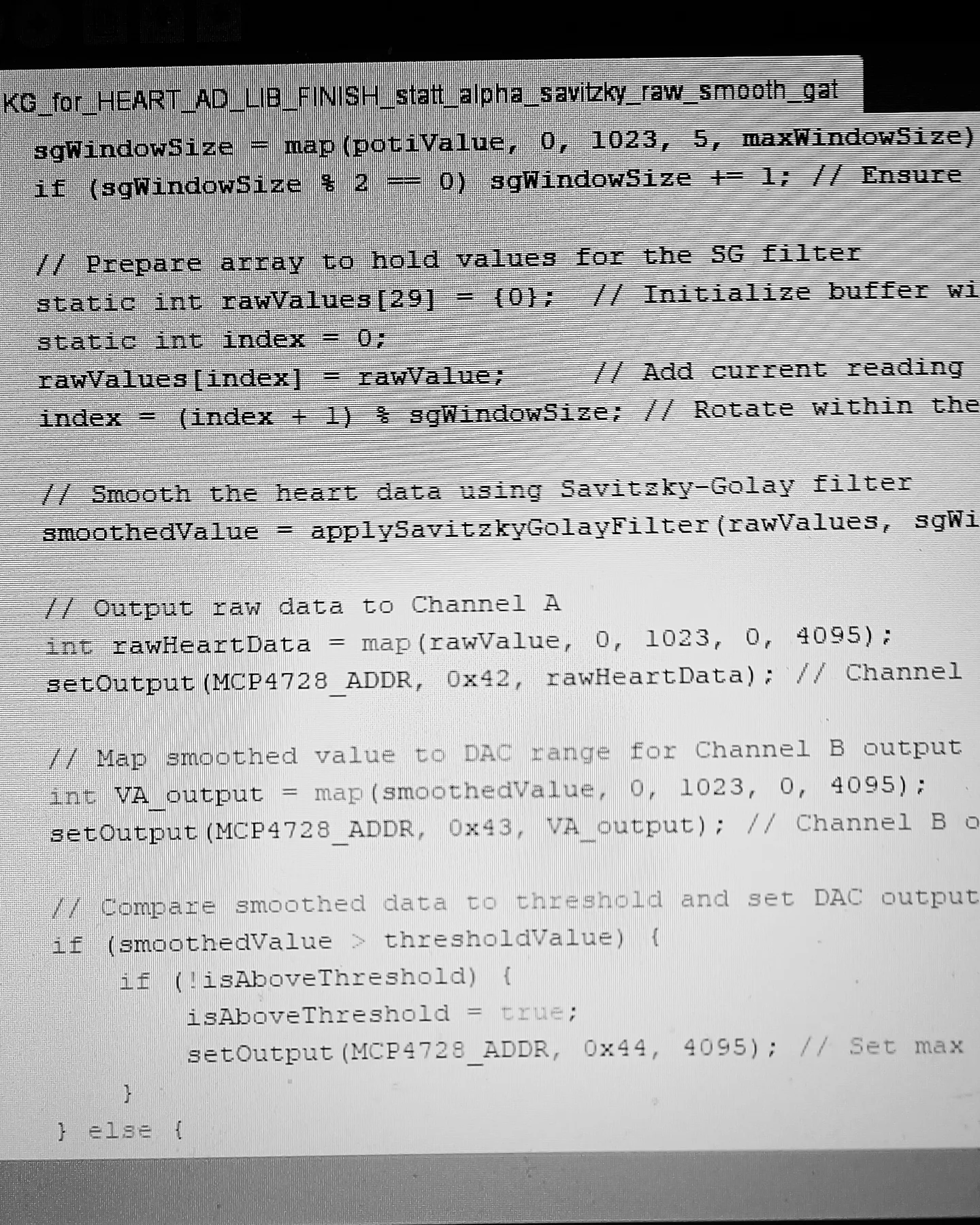

Pot 2: Smoothing of the heart data (adjusting the Savitzky-Golay filter's window size).
